Communication Substrate : KSHIPRA

KSHIPRA is a scalable communication substrate over PARAMNet-3. Its a software environment that enables applications to communicate faster using RDMA. KSHIPRA allows the HPC, storage and enterprise applications to take advantage of PARAMNet-3's low latency, high bandwidth capability and drastically cuts down the CPU usage, by using DAPL transport mechanism. It also depicts PARAMNet-3 as a standard IP network. Thus all TCP/IP applications can be run without any modifications. MPI, SDP, IPoIB and iSER are included in the protocol set.

KSHIPRA, available as a bundled CD is a complete environment consisting of drivers, libraries, cluster management tools and documentation.

Specifications

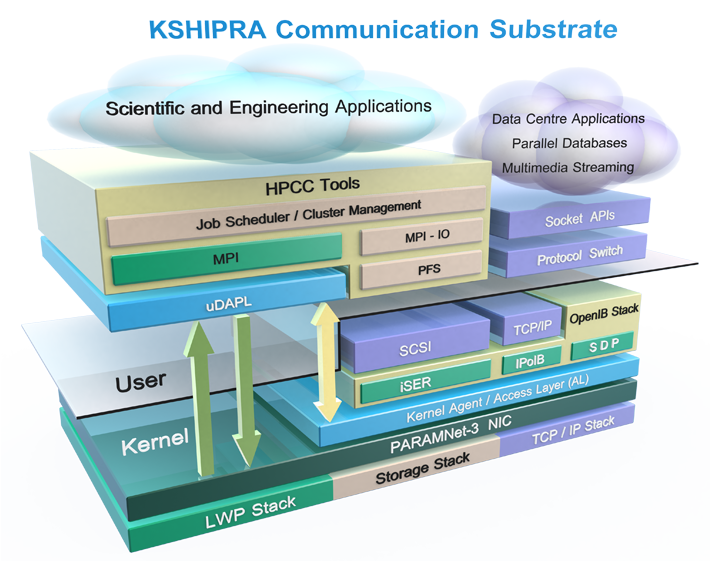

KSHIPRA Software Stack
  • Linux support
  • 64K End Points
  • RDMA centric architecture
  • uDAPL light weight protocol with kernel bypass
  • OpenIB adaptation with IPoIB, SDP and iSER protocols
  • Requires no modification in the existing TCP based applications
  • MPI Communication libraries MVAPICH, Intel MPI supported
  • Targeted for HPC, Storage/Database and enterprise applications
